Quick facts
- Part number
- 50ADM-P
- Category
- Safety & Test Equipment
50Adm-p 50 Amp

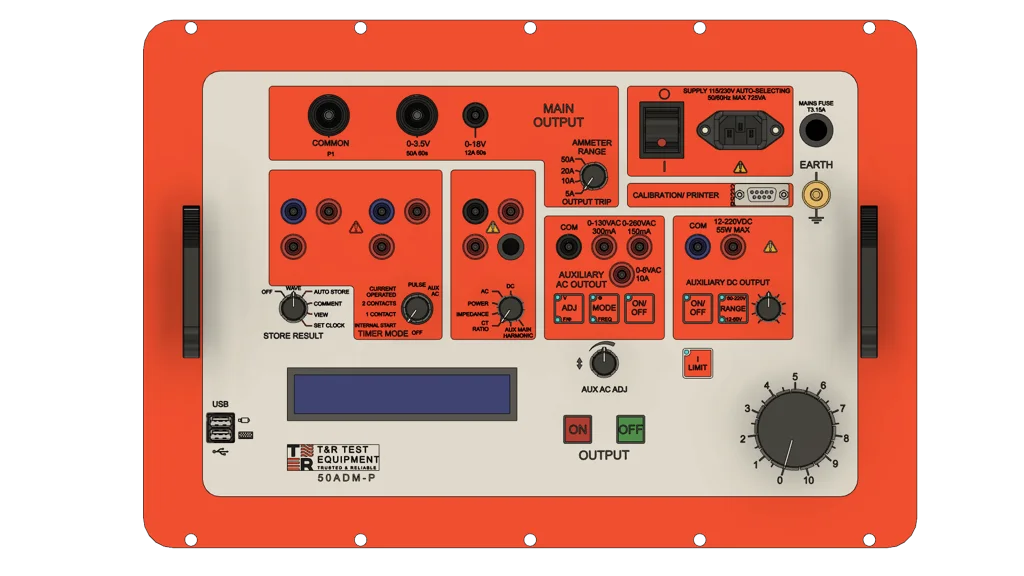

The 50ADM-P is a smaller version of our current injection system the 200ADM-P Mk2. The unit has a range of outputs allowing injection of currents from 1mA to 50A. Voltages up to 18V are available on the main outputs. True RMS metering with single cycle capture is provided. Three current ranges allow the full scale of the meter and trip level to be set independently of the selected output. Industry standard safety connectors are used throughout for safe, reliable convenience.

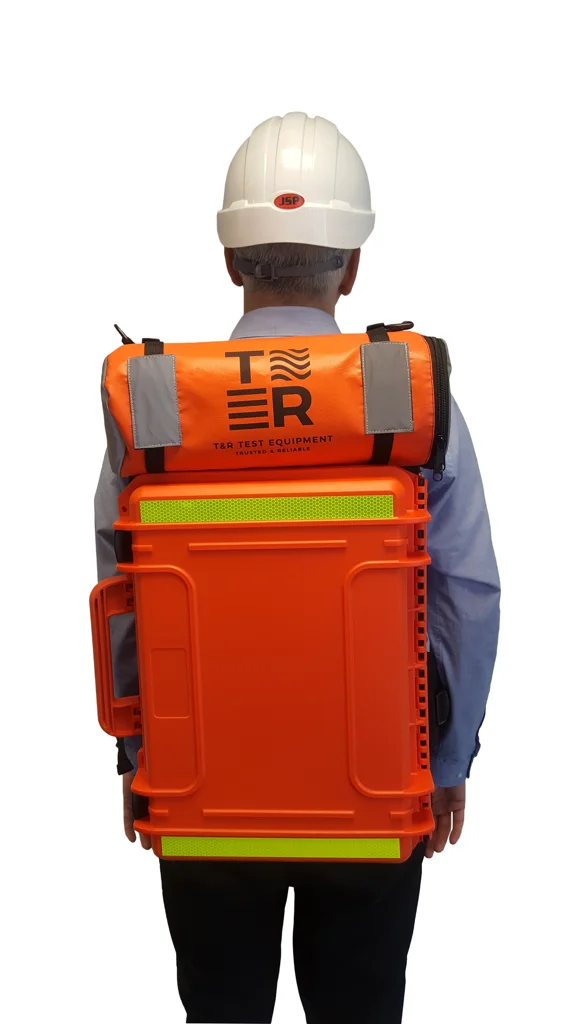

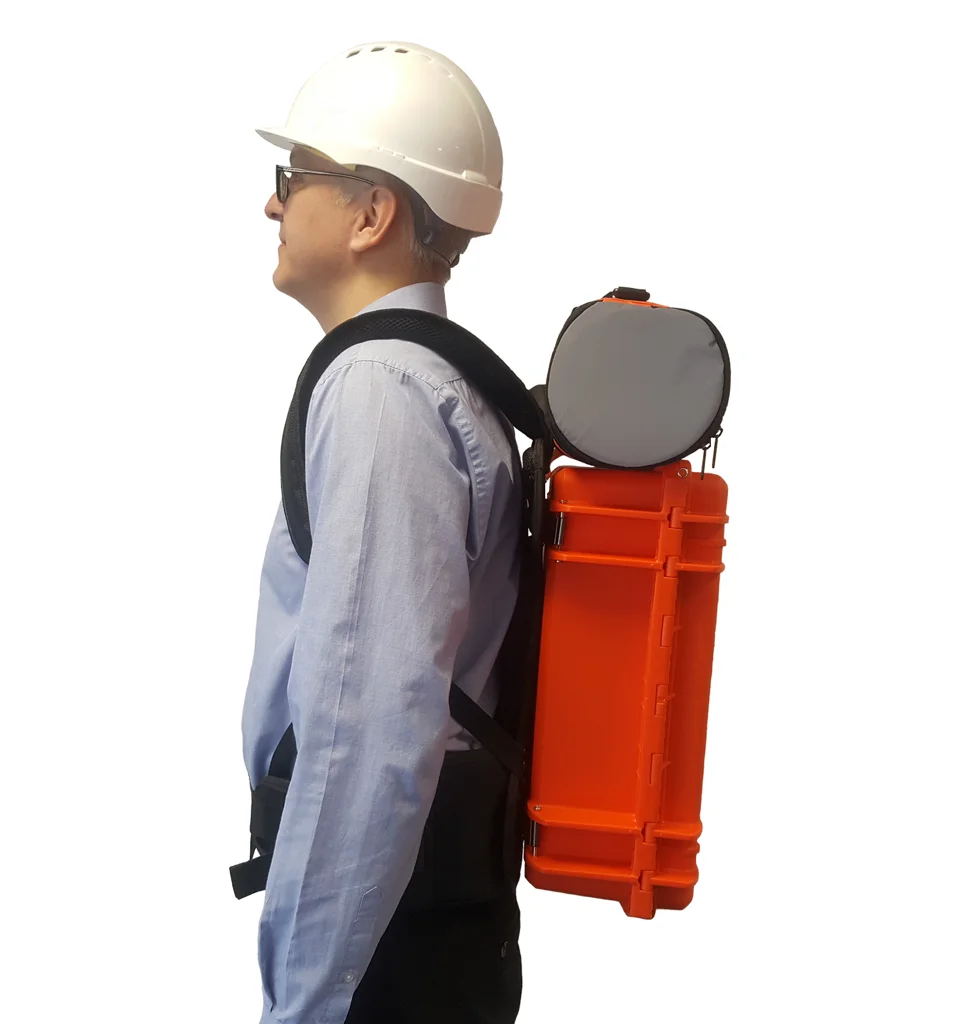

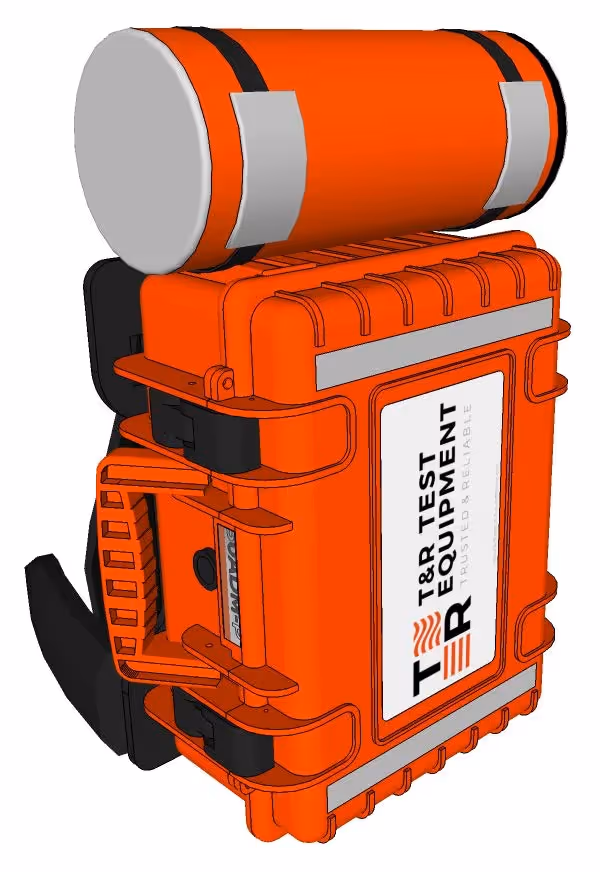

Features • 0-50A output current • True RMS metering with 1 cycle capture • Variable auxiliary AC voltage/current output with phase shift • Auxiliary metering input V, f, φ, Z, P, S, PF, CT ratio, harmonics • Variable auxiliary output 12-220VDC • Multi-function auto-range timing system • Current limit mode for fine control • Data storage to USB memory key including waveform & harmonics • USB keyboard interface • Automatic mains voltage selection • Optional Backpack System
Catalog pricing
Request pricing and availability for this item. Z Power Electric can confirm lead time, sourcing options, and part details.
