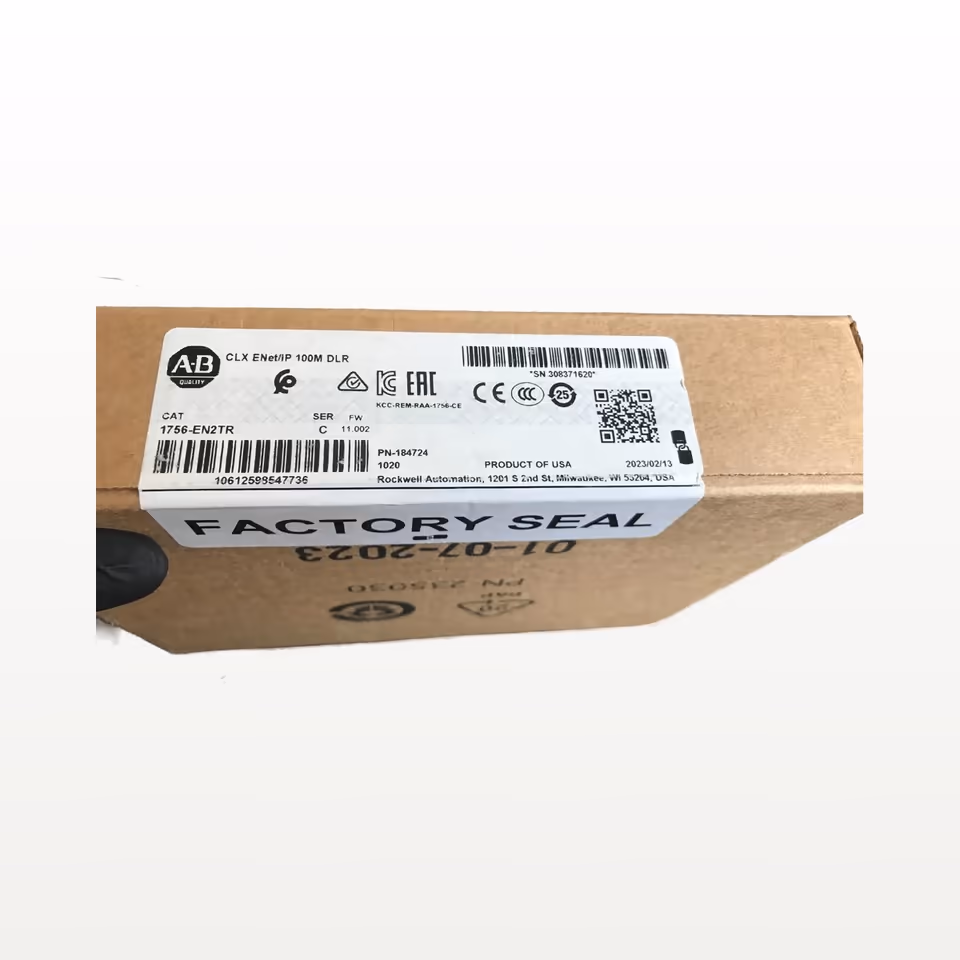

Allen-Bradley ControlLogix 1756-EN2TR Dual Port Ethernet/IP Communication Module | 1756-EN2TR
Allen-Bradley 1756-EN2TR is a dual-port Ethernet/IP communication module for ControlLogix chassis. Provides high-speed industrial Ethernet connectivity with built-in switch functionality for network daisy-chaining and redundancy.
The Allen-Bradley 1756-EN2TR ControlLogix Ethernet/IP Communication Module delivers robust industrial networking capabilities for ControlLogix automation systems. This dual-port module enables seamless integration of ControlLogix controllers into Ethernet/IP networks, supporting both device-level and information-level communications.
Featuring two independent 10/100 Mbps Ethernet ports with built-in switch functionality, the 1756-EN2TR allows for linear network topologies and provides network redundancy capabilities. The module supports CIP (Common Industrial Protocol) messaging, explicit messaging, and I/O messaging, making it ideal for distributed control applications and plant-wide information systems.
Catalog pricing
Add this item to your cart or contact Z Power Electric for quantity pricing, lead-time support, and backorder recovery.
Product overview
Engineered for industrial environments, this communication module provides excellent noise immunity and reliable operation in harsh manufacturing conditions. The module's diagnostic capabilities and status indicators facilitate easy troubleshooting and maintenance, while its hot-swappable design minimizes downtime during service operations.
Compatible with RSLogix 5000 programming software and integrated with the Rockwell Automation Integrated Architecture, the 1756-EN2TR ensures seamless configuration and optimal performance in industrial automation applications requiring high-speed, deterministic communication.
Specifications
- Series
- ControlLogix 1756
- Communication Ports
- 2 x RJ45 Ethernet
- Network Speed
- 10/100 Mbps auto-negotiating
- Protocol Support
- EtherNet/IP, CIP
- Switch Ports
- 2-port integrated switch
- Operating Voltage
- 5V DC (from backplane)
- Current Draw
- 800 mA at 5V DC (approximate)
- Operating Temperature
- 0°C to 60°C (32°F to 140°F)
- Storage Temperature
- -40°C to 85°C (-40°F to 185°F)
- Humidity
- 5% to 95% non-condensing
- Enclosure Type
- Open chassis mount
Key features
- Dual 10/100 Mbps Ethernet ports with integrated switch functionality
- Supports EtherNet/IP protocol with CIP messaging capabilities
- Linear topology support with daisy-chain configuration
- Hot-swappable design for minimal downtime maintenance
- Built-in network diagnostics and status indication
- Compatible with ControlLogix chassis and RSLogix 5000 software
Part number breakdown
1756-EN2TR Breakdown:
1756 = ControlLogix I/O Platform
EN = Ethernet Communication Module
2T = Dual Port with integrated switch
R = Standard temperature range (0°C to 60°C)
